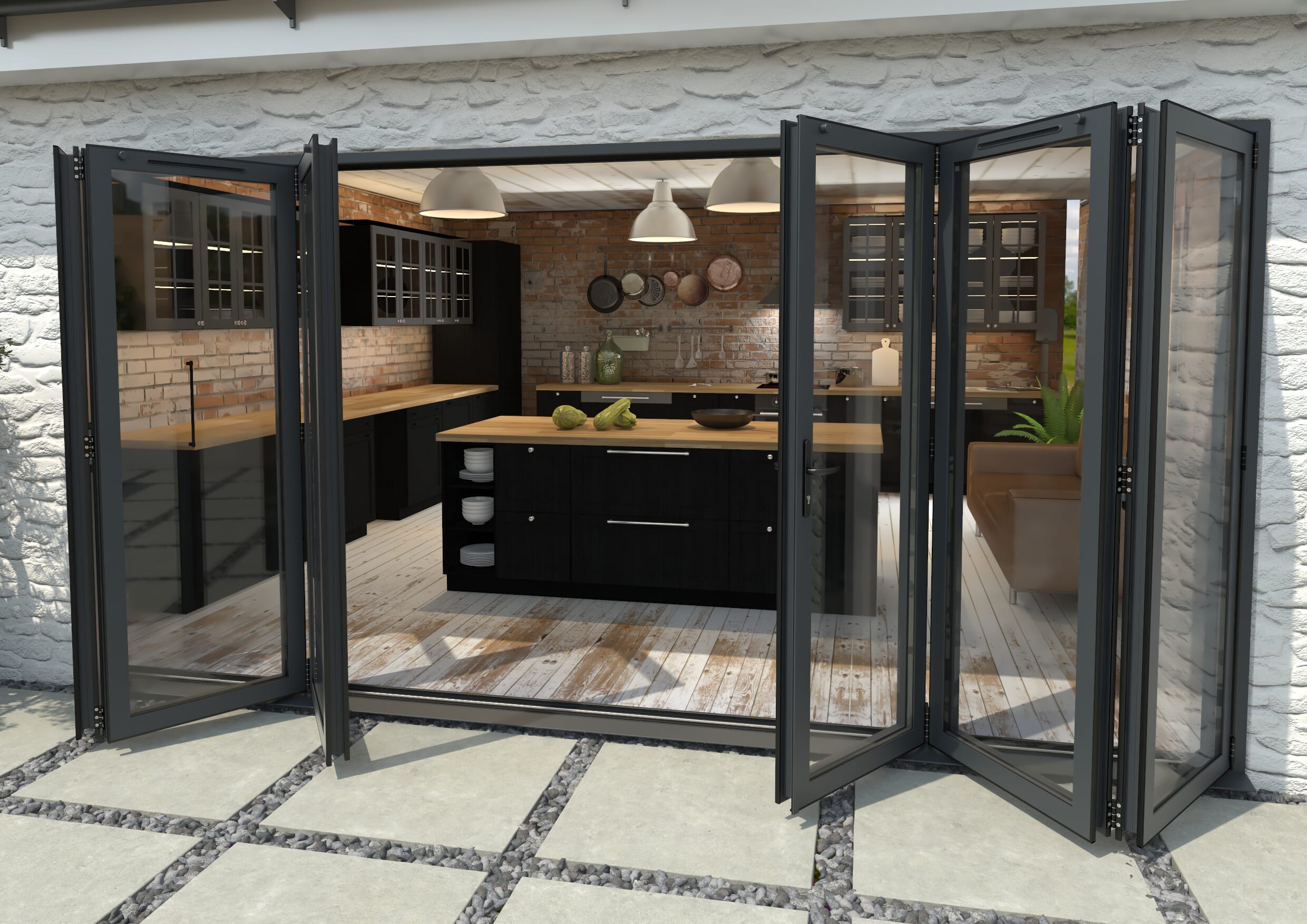

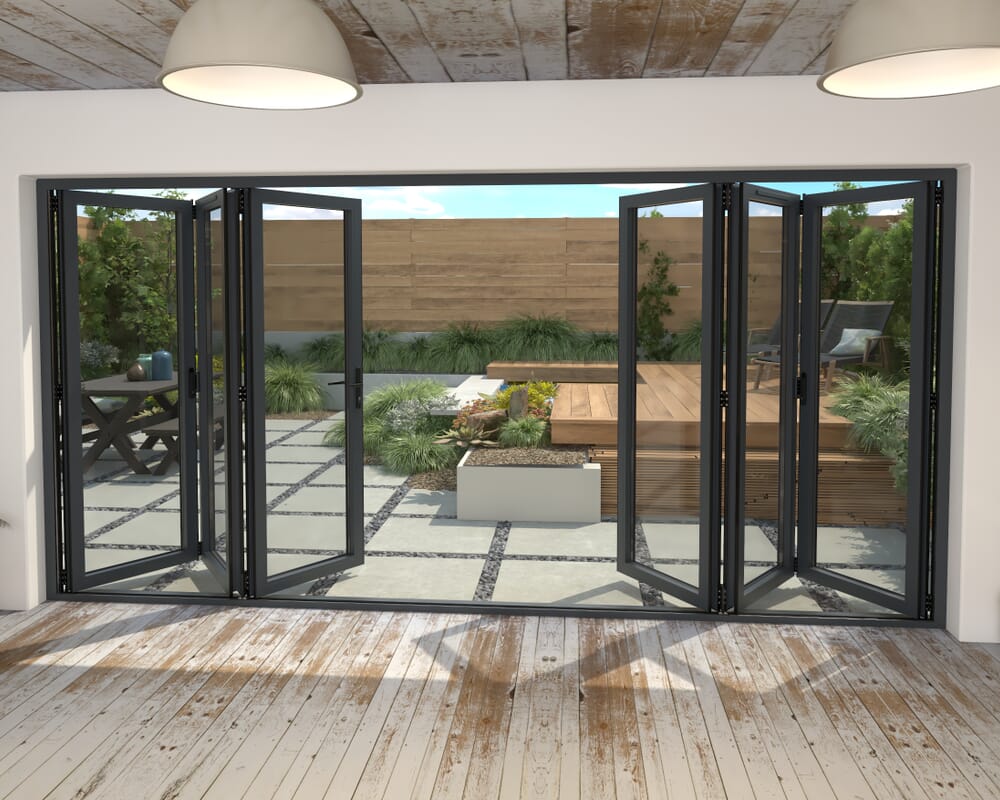

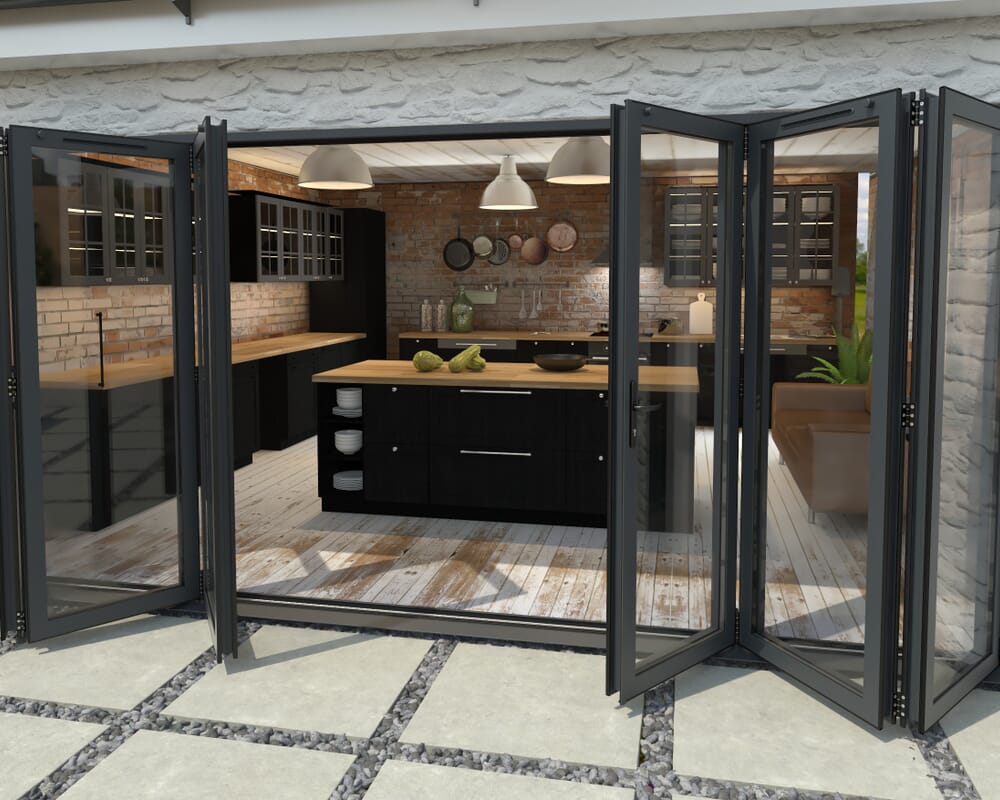

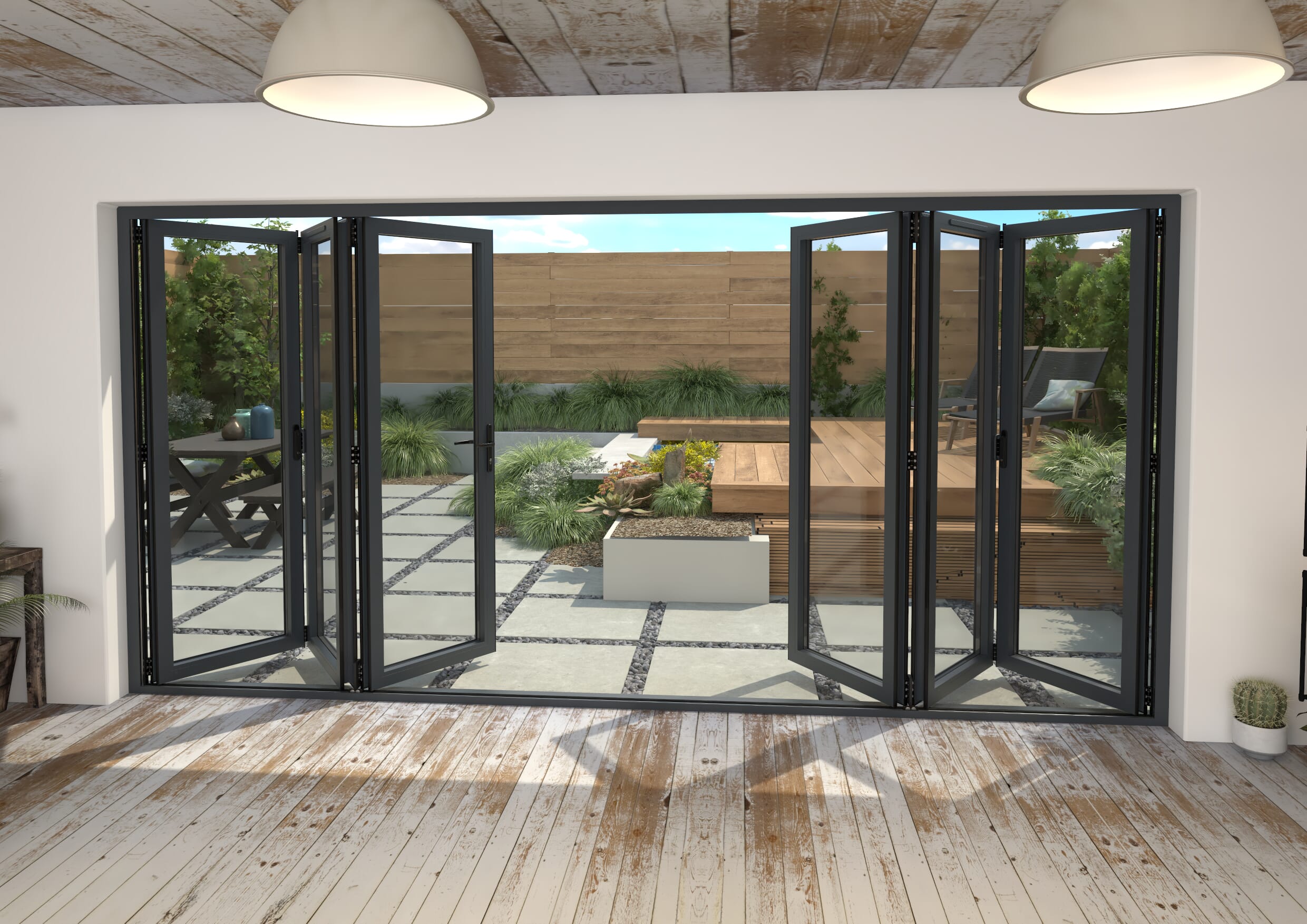

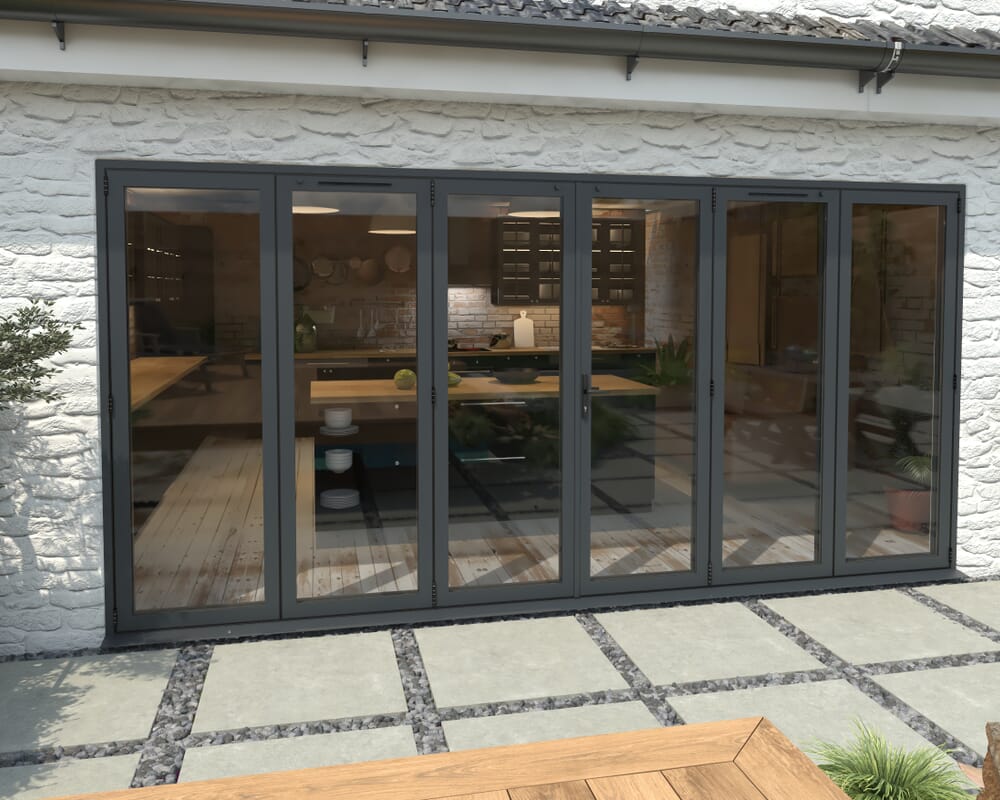

Part Q 4200mm Grey Aluminium Bifold Doors - 3 Left 3 Right

External Bifold Doors

4190 x 2090 x 82mm External Bifold Doors

Outer Frame Size

4190 x 2090mm (W x H)

£4,299.00

Please note: 10-15 Working Days Lead Time

✓ Order Now with Free Delivery

Part F Compliant

Part L Compliant

20 Year Guarantee On Aluminium Frames

Part Q Compliant

Best Seller

Anthracite Grey

Thermally-efficient Toughened Glazing

High Grade Materials

10 Year Guarantee

Aluminium Material

Futher Information

They are supplied with a full set of fitting instructutions to show you how to install the frame and doors into the opening, with a typical 3 door system taking less than a day to fit into a pre-prepared opening. Made-to-measure options are also available. Please use our form to request your quote. We also offer a range of thermally broken aluminium double glazed windows, to complement our aluminium concertina patio doors, which are ideal if you are building either extensions or a complete new property. Please contact us for details.

Technical Information

If you need further installation or care/maintenance advice with our products, please visit our technical information section or call us on 0203 846 0345.

Visit Technical Information Section ›

Technical Specification

Material

Thermally Broken Aluminium

Finish

Anthracite Grey

Glazing

Laminated Security Double Glazing

Guarantee

Aluminium 20 Years, Glazing 10 Years

Hardware

Black Handles and Hinges

Opening Options

Folding to the Left, Or Right

Part F Compliant

Yes

Part L Compliant

Yes

U-Value

1.4W/m²K

Part Q Compliant

Yes

Security

PAS 24 Rated multipoint locking system

Weather Tested

Yes

Cill Spec

167mm Cill & Threshold

Size

6 Door 4200mm (14ft)

Brickwork Opening

4205x2105

Door Pattern

3 Left/3 Right

Product Code

LIFEGRYALIBI42003L3RPTQ

	Roomfold Standard	Roomfold Deluxe	Roomfold Grande
Size Width Options	1215mm - 3502mm	1218mm - 4652mm	836mm - 3891mm
Available Finishes	Unfinished Oak, Prefinished Oak, & White Primed	Unfinished Oak, Prefinished Oak,& White Primed	Unfinished Oak, Prefinished Oak, White Primed, Black
Door Options	3,4, and 5 door options.	3,4,5 & 6 door options	2,3,4 and 5 door options
Trimming Ability - Height	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)
Trimming Ability - Width	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.
Frame Depth	78mm	78mm	133mm
Frame Height	2078mm	2078mm	2060mm
Hardware	Top Hung only, with floor mounted pivot.	Top Hung, bottom guided, with 20mm high low level guide rail. Ideal for running different floorings up to each side.	Top Hung, with jamb mounted bottom pivot. Ideal for fitting on top of existing floorings, where the flooring finish is the same both sides of the door set. Or ideal on top of tiled floors.
Hardware Adjustment	Height - 6mm	Height - 6mm	Height - 10mm
Supplied with Drop Bolts	No	Yes	Yes
Delivery / Collection	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.
Guarantee	10 years against manufacturing defects	10 years against manufacturing defects	10 years against manufacturing defects
Bespoke Service Available (24 week lead time)	No	No	Yes
Key Features and Benefits	Pairmaker not supplied on “meeting door” configurations. Frame always supplied in an unfinished Oak for on-site decorating no matter the door finish. Face fit hinges and hinge handle. Ideal for customers that will have the doors in their fully open or fully closed position 90% of the time and not using the mechanism on a regular basis. Perfect for closing off a room ona budget renovations/ offices. Will allow through flooring.	Frame supplied matching the door finish chosen. Can fill larger openings as the bottom track allows up to six door systems. Smooth operation at larger total widths with connection to the head and base track on the end of every other door. Face fit hinges and hinge handle. Ideal for customers changing flooring between rooms as the 20mm high 74mm deep low-level threshold gives a clean break between flooring. A robust, cost-effective system.	Frame supplied matching the door finish chosen. Superior “external grade” hardware allowing an incredibly smooth operation with no need for a base track. Face fit hinges and hinge handle including an offset hinge system which allows the doors to stack more compact than the other Roomfold options. Supplied with door stops across the whole internal rebate of the frame leaving no gaps at the top between top edge of the doors and underside of the track meaning they will offer more in terms of heat retention and sound reduction between rooms. More opening options that can suit any home. Our highest specification system with upgraded, stylish hardware.
