Oak 4l 3 Door Roomfold (3 X 1'9" Doors) At Climadoor

Product Description

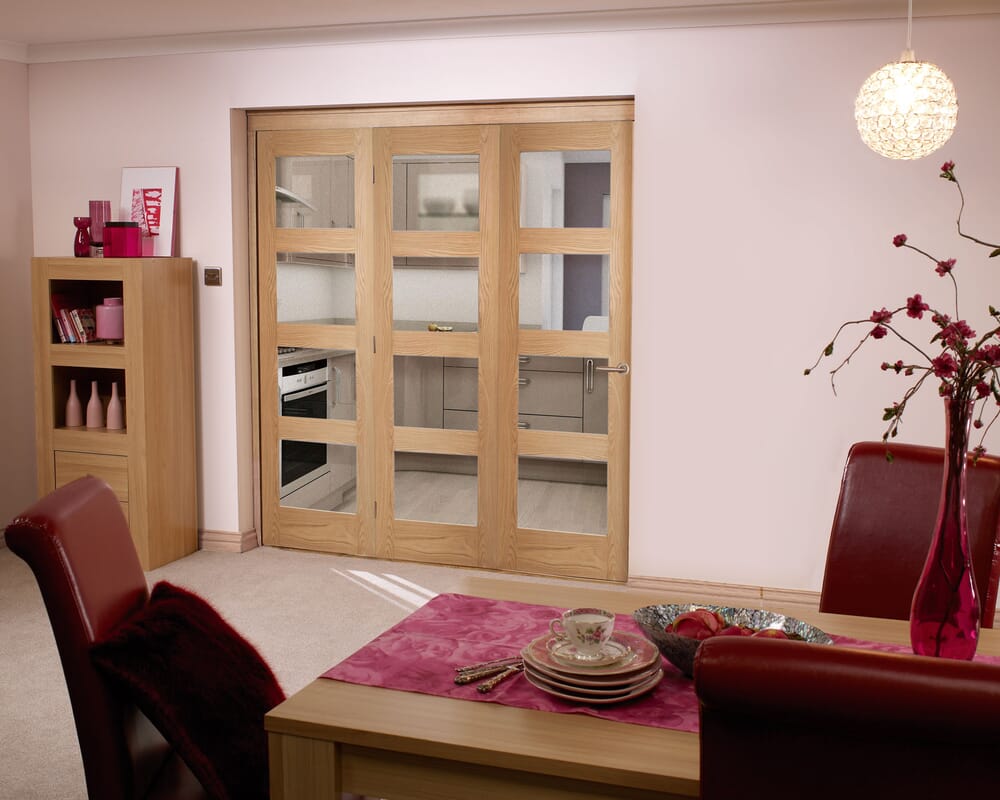

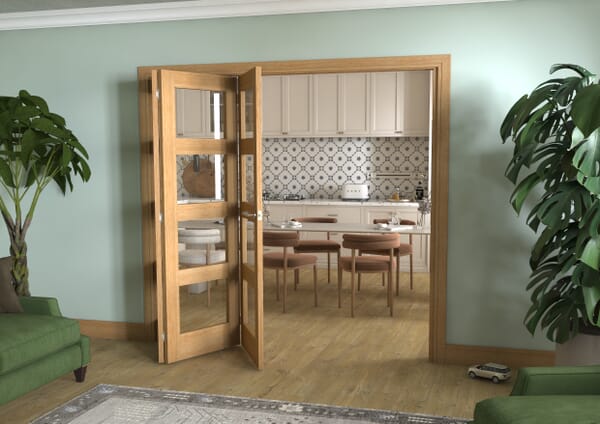

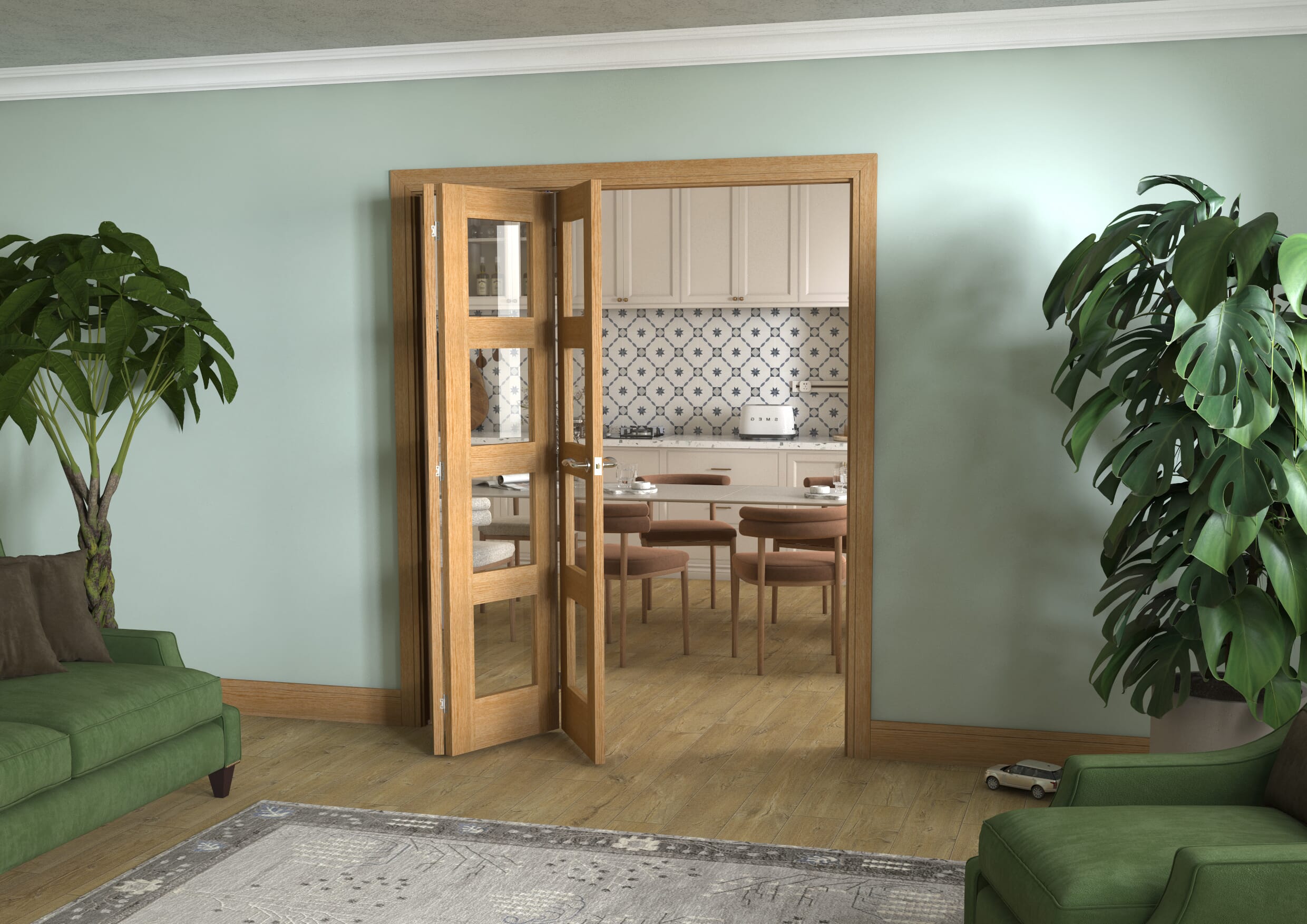

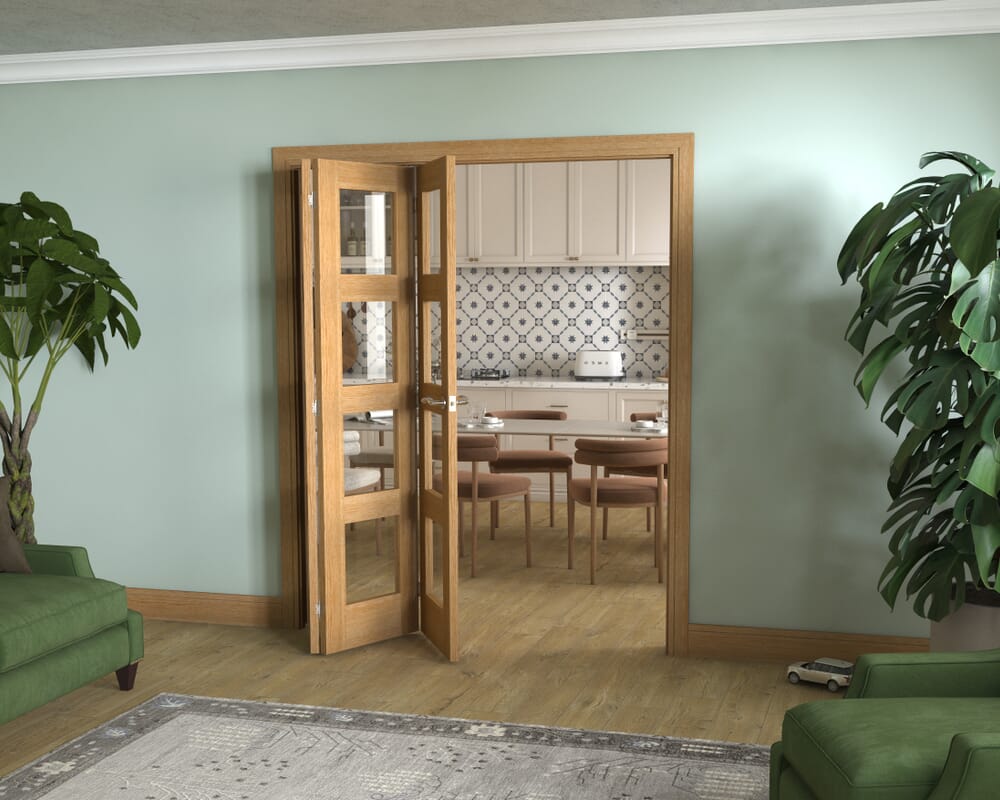

The oak 4L Shaker glazed roomfold door system provides a superb contemporary look to your room.

This unfinished 4L oak shaker door pattern has clear glazing and gives you a warm appeal to your room. Available in 3, 4 5 and 6 door systems, using either 1'9", 2'0" or 2'3" internal doors you ensure that installation is made simple with no planing of doors on site and a simple installation routine to follow to assemble the doors and frame in the opening.

To decide on the best option for which bifold doors are for you, take time to review the opening sizes and product sizes available before selecting the option to buy.

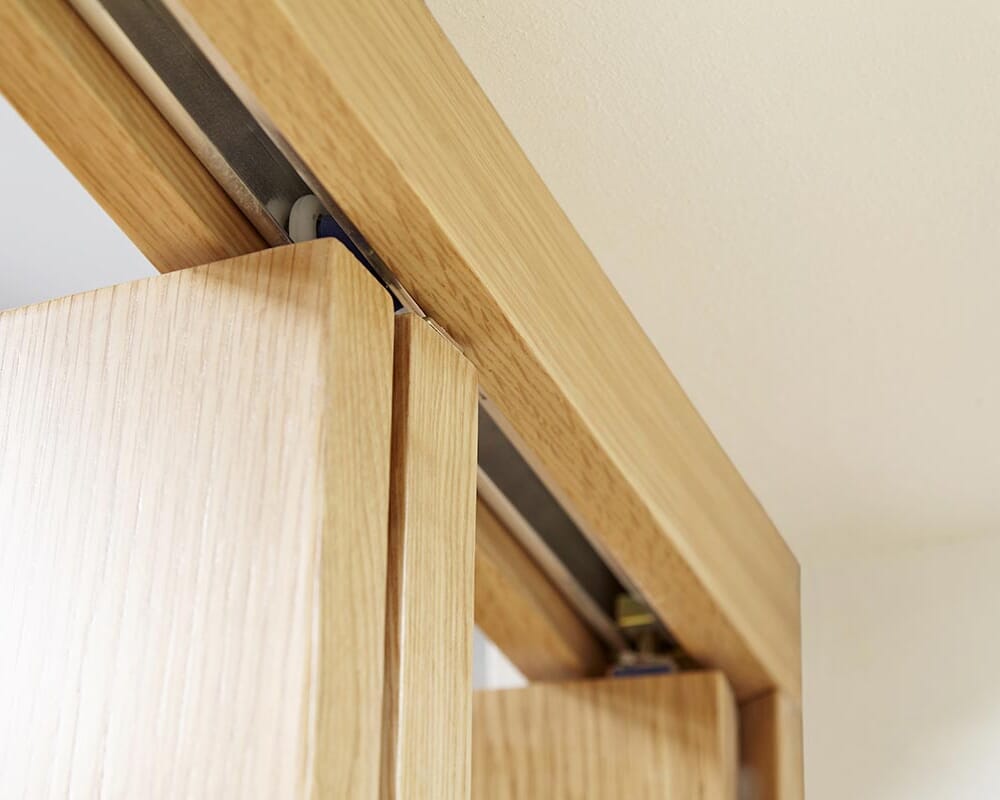

This top hung system, ensures you do not need any tracking at floor level, and consists of Frame pack, doors, hinges, running hardware and head track and is provided in an easy to assemble kit. The frame packs are always supplied in unfinished oak veneer or foil (whether the doors are prefinished or not), to allow you to choose the decoration of your choice to match skirtings and architraves. All our systems are offered without handles or drop bolts to allow you to match existing ironmongery in your room.

Climadoor offers technical advice and support on any interior folding doors, so if you have a size which is near to one of our standard sizes, dont hesitate to call and we'll give you our help.

For maximum flexibility when fitting these doors, and to allow them to be altered in size (within their tolerance) to meet your opening, our doors and frames are not pre-machined for hardware. Please refer to this product's fitting instructions for details on skillset and tools required for installation.

Is this the right Roomfold for you?
Why not compare the specifications of all Roomfold's to find the right door for your next project.

Compare Roomfold Bifold Doors

Technical Information

CLIMADOOR Roomfold Standard Fitting Intstructions 30kg V4

If you need further installation or care/maintenance advice with our products, please visit our technical information section or call us on 0203 846 0345.

Visit Technical Information Section ›

Technical Specification

Material

Oak

Finish

Unfinished

Glazing

Clear Glass

Construction

Engineered Solid Core (Heavyweight)

Hardware

Chrome effect

Size

3 Door 1671 wide x 2078 high

Raised Moulding

N/A

Door Pattern

3+0

Door Leaf Size

78x21

Door Leaf Thickness

35mm

Door Leaf Size

1981x533mm / 78x21"

Door Opening Pattern

3 + 0 (Reversible)

Product Code

RSOU4LC-30-533

	Roomfold Standard	Roomfold Deluxe	Roomfold Grande
Size Width Options	1215mm - 3502mm	1218mm - 4652mm	836mm - 3891mm
Available Finishes	Unfinished Oak, Prefinished Oak, & White Primed	Unfinished Oak, Prefinished Oak,& White Primed	Unfinished Oak, Prefinished Oak, White Primed, Black
Door Options	3,4, and 5 door options.	3,4,5 & 6 door options	2,3,4 and 5 door options
Trimming Ability - Height	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)
Trimming Ability - Width	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.
Frame Depth	78mm	78mm	133mm
Frame Height	2078mm	2078mm	2060mm
Hardware	Top Hung only, with floor mounted pivot.	Top Hung, bottom guided, with 20mm high low level guide rail. Ideal for running different floorings up to each side.	Top Hung, with jamb mounted bottom pivot. Ideal for fitting on top of existing floorings, where the flooring finish is the same both sides of the door set. Or ideal on top of tiled floors.
Hardware Adjustment	Height - 6mm	Height - 6mm	Height - 10mm
Supplied with Drop Bolts	No	Yes	Yes
Delivery / Collection	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.
Guarantee	10 years against manufacturing defects	10 years against manufacturing defects	10 years against manufacturing defects
Bespoke Service Available (24 week lead time)	No	No	Yes

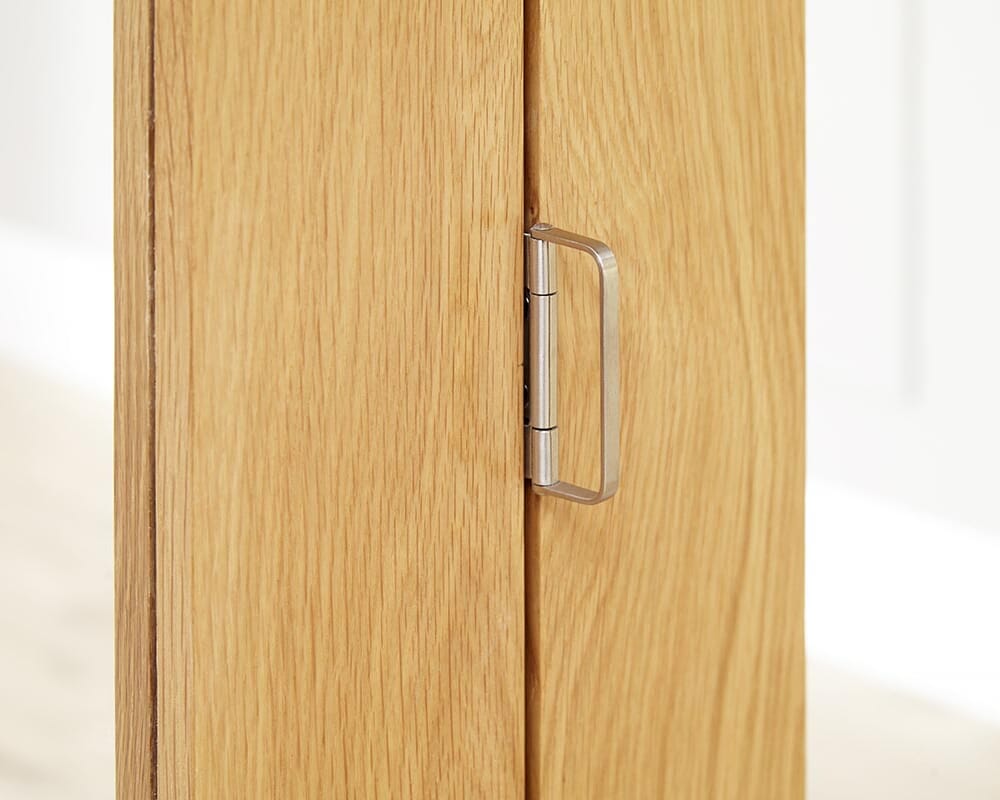

Key Features and Benefits	Pairmaker not supplied on “meeting door” configurations. Frame always supplied in an unfinished Oak for on-site decorating no matter the door finish. Face fit hinges and hinge handle. Ideal for customers that will have the doors in their fully open or fully closed position 90% of the time and not using the mechanism on a regular basis. Perfect for closing off a room ona budget renovations/ offices. Will allow through flooring.	Frame supplied matching the door finish chosen. Can fill larger openings as the bottom track allows up to six door systems. Smooth operation at larger total widths with connection to the head and base track on the end of every other door. Face fit hinges and hinge handle. Ideal for customers changing flooring between rooms as the 20mm high 74mm deep low-level threshold gives a clean break between flooring. A robust, cost-effective system.	Frame supplied matching the door finish chosen. Superior “external grade” hardware allowing an incredibly smooth operation with no need for a base track. Face fit hinges and hinge handle including an offset hinge system which allows the doors to stack more compact than the other Roomfold options. Supplied with door stops across the whole internal rebate of the frame leaving no gaps at the top between top edge of the doors and underside of the track meaning they will offer more in terms of heat retention and sound reduction between rooms. More opening options that can suit any home. Our highest specification system with upgraded, stylish hardware.
