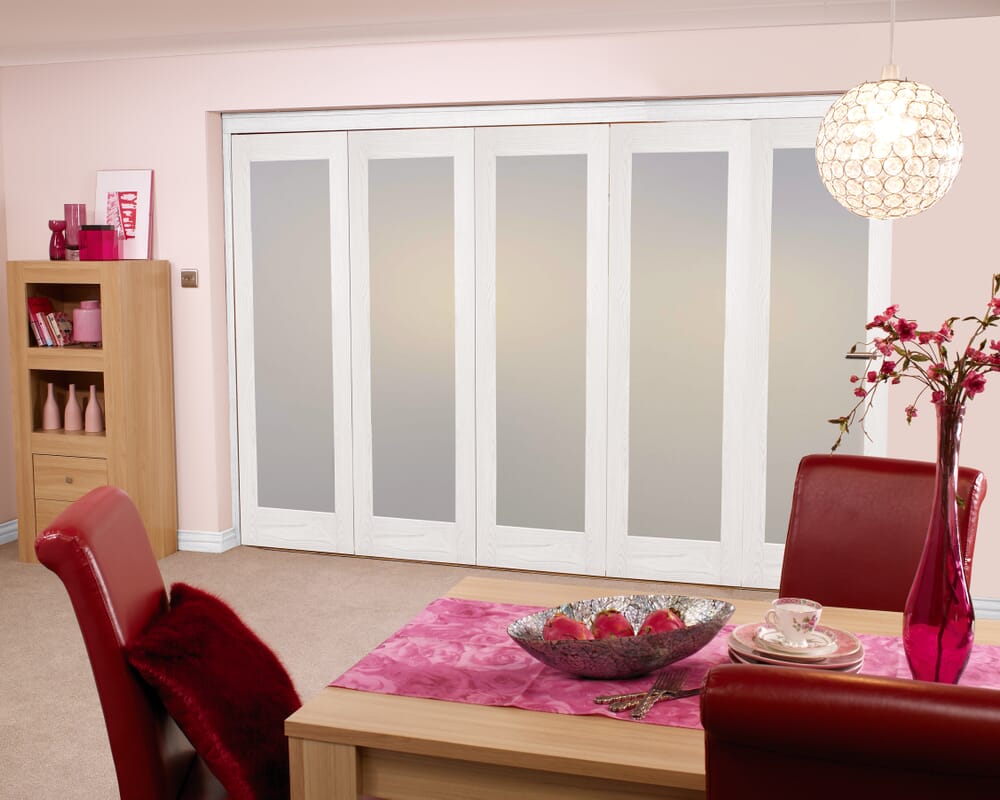

Frosted Glazed White 5 Door Roomfold (5 X 27" Doors) Bifold Doors At Climadoor

Product Description

This superb interior bi folding sliding door is an ideal alternative to the white clear glazed option. These contemporary solid white primed shaker glazed doors are supplied in a high quality white primed finish with an obscure glazing pattern that adds privacy whilst retaining light flow and keeping that contemporary look.

Available in 3, and 4 door systems, using 1'9", 2'0" or 2'3" internal doors, you ensure that installation is made simple with no planing of doors on site and a simple installation routine to follow to assemble the doors and frame in the opening.

This top hung system, ensures you do not need any tracking at floor level, and consists of Frame pack, doors, hinges, running hardware and head track and is provided in an easy to assemble kit. The frame packs are supplied unfinished to allow you to choose the decoration of your choice to match skirtings and architraves.

Please refer to our storage and decorating recomendations before installing these bifold doors. Our system excludes drop bolts and handle/latch.

For maximum flexibility when fitting these doors, and to allow them to be altered in size (within their tolerance) to meet your opening, our doors and frames are not pre-machined for hardware. Please refer to this product's fitting instructions for details on skillset and tools required for installation.

Technical Information

CLIMADOOR Roomfold Standard Fitting Intstructions 30kg V4

If you need further installation or care/maintenance advice with our products, please visit our technical information section or call us on 0203 846 0345.

Visit Technical Information Section ›

Technical Specification

Finish

Primed

Glazing

Frosted Glass

Construction

Engineered Solid Core (Heavyweight)

Hardware

Top hung hardware with chrome effect hinges

Size

Interior Folding Door

Raised Moulding

N/A

Door Pattern

4+1

Door Leaf Size

78x27

Door Leaf Thickness

35mm

Door Leaf Size

1981x686mm / 78x27"

Door Opening Pattern

5 + 0 (Reversible)

Product Code

RSWP1LF-50-686

	Roomfold Standard	Roomfold Deluxe	Roomfold Grande
Size Width Options	1215mm - 3502mm	1218mm - 4652mm	836mm - 3891mm
Available Finishes	Unfinished Oak, Prefinished Oak, & White Primed	Unfinished Oak, Prefinished Oak,& White Primed	Unfinished Oak, Prefinished Oak, White Primed, Black
Door Options	3,4, and 5 door options.	3,4,5 & 6 door options	2,3,4 and 5 door options
Trimming Ability - Height	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)
Trimming Ability - Width	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.
Frame Depth	78mm	78mm	133mm
Frame Height	2078mm	2078mm	2060mm
Hardware	Top Hung only, with floor mounted pivot.	Top Hung, bottom guided, with 20mm high low level guide rail. Ideal for running different floorings up to each side.	Top Hung, with jamb mounted bottom pivot. Ideal for fitting on top of existing floorings, where the flooring finish is the same both sides of the door set. Or ideal on top of tiled floors.
Hardware Adjustment	Height - 6mm	Height - 6mm	Height - 10mm
Supplied with Drop Bolts	No	Yes	Yes
Delivery / Collection	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.
Guarantee	10 years against manufacturing defects	10 years against manufacturing defects	10 years against manufacturing defects
Bespoke Service Available (24 week lead time)	No	No	Yes
Key Features and Benefits	Pairmaker not supplied on “meeting door” configurations. Frame always supplied in an unfinished Oak for on-site decorating no matter the door finish. Face fit hinges and hinge handle. Ideal for customers that will have the doors in their fully open or fully closed position 90% of the time and not using the mechanism on a regular basis. Perfect for closing off a room ona budget renovations/ offices. Will allow through flooring.	Frame supplied matching the door finish chosen. Can fill larger openings as the bottom track allows up to six door systems. Smooth operation at larger total widths with connection to the head and base track on the end of every other door. Face fit hinges and hinge handle. Ideal for customers changing flooring between rooms as the 20mm high 74mm deep low-level threshold gives a clean break between flooring. A robust, cost-effective system.	Frame supplied matching the door finish chosen. Superior “external grade” hardware allowing an incredibly smooth operation with no need for a base track. Face fit hinges and hinge handle including an offset hinge system which allows the doors to stack more compact than the other Roomfold options. Supplied with door stops across the whole internal rebate of the frame leaving no gaps at the top between top edge of the doors and underside of the track meaning they will offer more in terms of heat retention and sound reduction between rooms. More opening options that can suit any home. Our highest specification system with upgraded, stylish hardware.
