813x2032x44mm (32") Paint Grade Ply External Fire Door By Jeld-wen

Single Leaf External Doors

On Sale

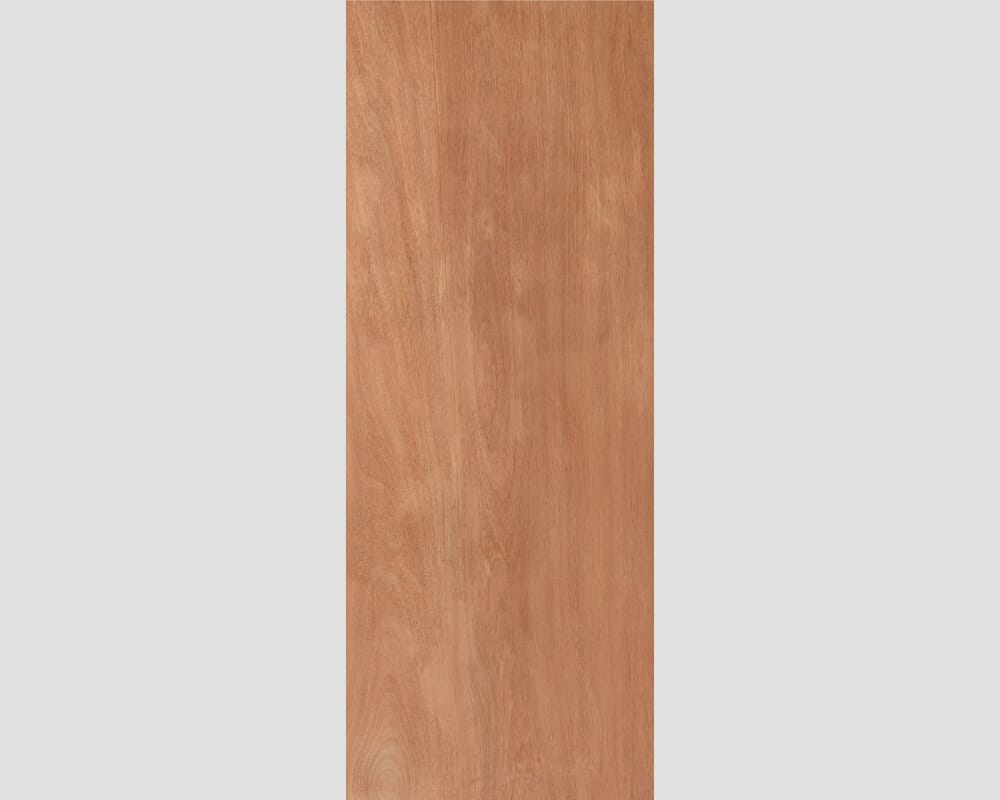

813x2032x44mm (32") Paint Grade Ply External Fire Door by Jeld-Wen

Delivery In 3-7 Working Days

Unfinished

High Grade Materials

10 Year Guarantee

813 x 2032 x 44mm Single Leaf External Doors

Door Size

2032 x 813 x 44mm (H x W x T)

£62.99 £125.99

✓ In stock - ready to ship

The Jeld-Wen Paint Grade FD30 44mm External Fire Door is a durable, fire-rated solution designed for exterior applications where safety and reliability are paramount. Perfect for use as a temporary low cost fire door option for contractors, too.

Certified to FD30 fire resistance standards, this door provides 30-minute fire protection, tested to BS476: Part 22: 1987 and Certifire CF192 approved. Its flush face construction incorporates softwood stiles and rails, a tubular chipboard core, and exposed hardwood lippings on both long edges for enhanced durability in external conditions.

Supplied unfinished, this door is designed for a high-build paint finish, though staining is not recommended. It allows for maximum trimming of 6mm from the bottom and 4mm from each long edge, while the top must remain untrimmed to maintain fire certification.

For installation, intumescent strips must be applied to the top and sides of the door or frame to ensure compliance with fire safety regulations. On-site glazing or aperture cutting is not permitted, unless completed by a BWF-Certifire licensed processor.

Backed by a 10-year guarantee against manufacturing defects, the Jeld-Wen Paint Grade FD30 44mm External Fire Door offers dependable fire resistance, a smooth paint-ready surface, and robust construction, making it a reliable choice for external applications.

Technical Information

Paint Grade Plywood External FD30 Fire Door Data Sheet

If you need further installation or care/maintenance advice with our products, please visit our technical information section or call us on 0203 846 0345.

Visit Technical Information Section ›

Technical Specification

Material

Plywood

Finish

Unfinished

Glazing

No Glass

Construction

Engineered Solid Tubular Core (Heavyweight)

Lipping

8mm

Fire Rating

FD30

Lipping Short Edge

8mm

Lipping Long Edge

8mm

Max Trim Short Edge

6mm

Max Trim Long Edge

4mm

Product Code

PH28F1XF

	Roomfold Standard	Roomfold Deluxe	Roomfold Grande
Size Width Options	1215mm - 3502mm	1218mm - 4652mm	836mm - 3891mm
Available Finishes	Unfinished Oak, Prefinished Oak, & White Primed	Unfinished Oak, Prefinished Oak,& White Primed	Unfinished Oak, Prefinished Oak, White Primed, Black
Door Options	3,4, and 5 door options.	3,4,5 & 6 door options	2,3,4 and 5 door options
Trimming Ability - Height	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)	20mm on height (contact us for details, as some sets can be trimmed more than this)
Trimming Ability - Width	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.	20mm on 2 doors and then an extra 10mm per door thereafter. Where individual door leaf sizes are 686mm or bigger the trim allowance is 20mm per leaf - equal amounts off each side of the door.
Frame Depth	78mm	78mm	133mm
Frame Height	2078mm	2078mm	2060mm
Hardware	Top Hung only, with floor mounted pivot.	Top Hung, bottom guided, with 20mm high low level guide rail. Ideal for running different floorings up to each side.	Top Hung, with jamb mounted bottom pivot. Ideal for fitting on top of existing floorings, where the flooring finish is the same both sides of the door set. Or ideal on top of tiled floors.
Hardware Adjustment	Height - 6mm	Height - 6mm	Height - 10mm
Supplied with Drop Bolts	No	Yes	Yes
Delivery / Collection	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.	Delivery £60, Collection free from either DE24 9HL, or S44 5HS, after order. All orders over £750 are free delivery.
Guarantee	10 years against manufacturing defects	10 years against manufacturing defects	10 years against manufacturing defects
Bespoke Service Available (24 week lead time)	No	No	Yes
Key Features and Benefits	Pairmaker not supplied on “meeting door” configurations. Frame always supplied in an unfinished Oak for on-site decorating no matter the door finish. Face fit hinges and hinge handle. Ideal for customers that will have the doors in their fully open or fully closed position 90% of the time and not using the mechanism on a regular basis. Perfect for closing off a room ona budget renovations/ offices. Will allow through flooring.	Frame supplied matching the door finish chosen. Can fill larger openings as the bottom track allows up to six door systems. Smooth operation at larger total widths with connection to the head and base track on the end of every other door. Face fit hinges and hinge handle. Ideal for customers changing flooring between rooms as the 20mm high 74mm deep low-level threshold gives a clean break between flooring. A robust, cost-effective system.	Frame supplied matching the door finish chosen. Superior “external grade” hardware allowing an incredibly smooth operation with no need for a base track. Face fit hinges and hinge handle including an offset hinge system which allows the doors to stack more compact than the other Roomfold options. Supplied with door stops across the whole internal rebate of the frame leaving no gaps at the top between top edge of the doors and underside of the track meaning they will offer more in terms of heat retention and sound reduction between rooms. More opening options that can suit any home. Our highest specification system with upgraded, stylish hardware.
